3D Modelling Pipeline

Pre-Production in 3D Modelling Pipeline

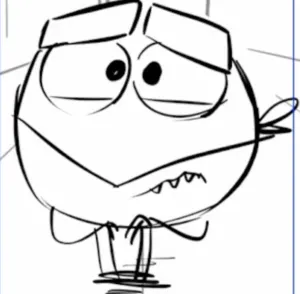

Character Sketch Art

Pre-production in 3D modelling involves creating detailed character sketches from various angles. These sketches guide the entire pipeline, ensuring consistency in materials, UV mapping, fur, cloth, and adherence to style guides.

3D Modelling

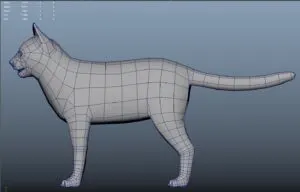

Block out of 3D Model

3D modelling begins with manipulating vertices and polygons to create basic shapes like cubes and spheres. These primitives are refined to form complex models that meet specific design requirements.

UV Mapping

Visual Representation of UV Mapping

UV Mapping involves unwrapping a 3D model’s surfaces into a 2D image (‘UV Map’). This process allows for precise texturing and detailing, ensuring textures align correctly with the model’s geometry.

Texturing and Shaders

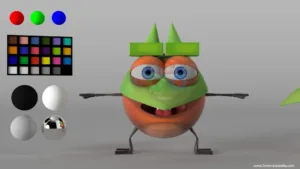

PBR vs Non-PBR

Texturing involves applying materials and shaders using tools like Quixel for Physically Based Rendering (PBR). PBR enhances realism by simulating how light interacts with surfaces based on their material properties.

Rigging

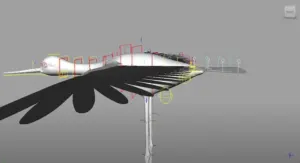

Rigging Example/ Visualization

Rigging establishes a skeletal structure within the model, essential for animation. It ensures that movements are realistic and controlled, particularly crucial for organic models.

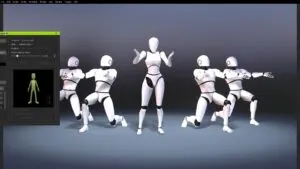

Animation

Animation follows rigging, enabling movements that bring models to life. It precedes lighting to optimize rendering times and accommodate changes during production.

Lighting

3DS Max Light Types

Lighting placement and configuration are critical post-animation. It enhances the model’s visual appeal and realism, influenced by textures, animations, and the overall scene setup.

Rendering

Rendering, using techniques like Arnold or Scanline, finalizes the model’s appearance. It transforms 3D models into 2D images or videos, integrating all prior elements into the final visual composition.

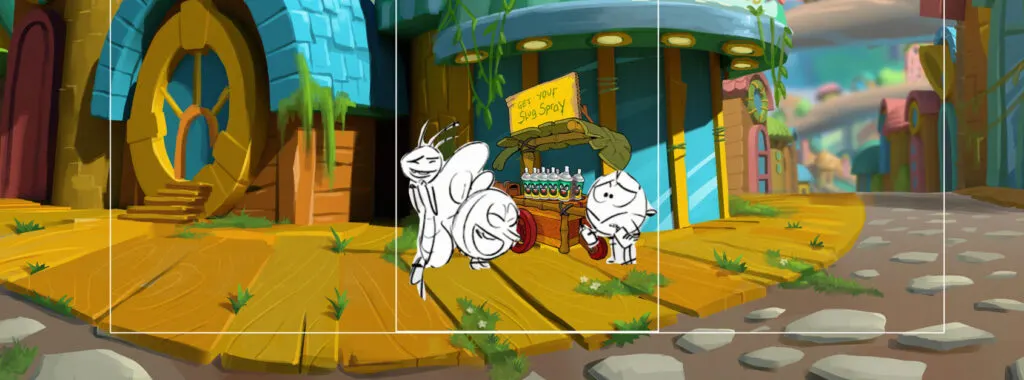

Compositing

Compositing merges rendered elements into a cohesive final product. It polishes the visual output, ensuring all components blend seamlessly for presentations or game environments.

Q&A Section – 3D Modelling Pipeline

Q1: What is the role of UV Mapping in 3D modelling?

UV Mapping unwraps 3D model surfaces for texture application, ensuring precise detailing.

Q2: Why is rigging necessary in animation?

Rigging provides a skeletal framework for models, enabling realistic movements during animation.

Q3: How does Physically Based Rendering (PBR) enhance 3D modelling?

PBR simulates real-world lighting effects, improving the visual fidelity and realism of 3D models.
