Introduction
Before movies amazed us with lifelike creatures, before architects could walk through virtual buildings, and before engineers could 3D print complex components, designers relied on hand-drawn sketches and mechanical drafting.
History of 3D Modeling and CAD (Computer-Aided Design) is one of ingenuity and continuous innovation. It spans centuries, from early descriptive geometry to today’s AI-enhanced 3D design tools. Let us explore how, when, and why this field evolved and where it is heading.
Origin of 3D Modeling: Early Drafting and Descriptive Geometry
The roots of modern CAD go back 300 to 400 years when engineers used descriptive geometry to represent 3D objects in 2D. This laid the foundation for engineering drawing and manual drafting.
The next great leap came after World War II, when the development of real-time computing in the 1950s opened the door to interactive design. This concept would become the heart of modern 3D modeling.
History of 3D Modeling: The Pioneers of CAD Technology
Dr. Patrick Hanratty, The “Father of CAD/CAM”
In 1957, while working at General Electric, Dr. Patrick Hanratty developed PRONTO (Program for Numerical Tooling Operations), the first commercial numerical control programming system. This became the precursor to modern Computer-Aided Manufacturing (CAM).
Later at General Motors, Hanratty helped develop Design Augmented by Computers (DAC). His next milestone came in the early 1970s when his company released ADAM (Automated Drafting and Machining), the first machine-independent CAD/CAM software. Remarkably, about 80 percent of today’s CAD systems trace their lineage back to ADAM.
Dr. Ivan Sutherland, Interactive 3D Design and Early VR
In 1963, Dr. Ivan Sutherland created Sketchpad at MIT as part of his Ph.D. thesis. Using a light pen, designers could draw directly on a CRT screen, making it the first interactive CAD system.
Sutherland also developed an early hidden-line removal algorithm that enabled realistic 3D representations of models.
In 1967, Sutherland and student Bob Sproull built a Head-Mounted Display system that let users explore a computer-generated 3D environment. This project essentially marked the birth of Virtual Reality.
Dr. Ken Versprille, Inventor of NURBS
Dr. Ken Versprille introduced NURBS (Non-Uniform Rational Basis Spline) through his Ph.D. thesis. NURBS allowed for precise and flexible representation of curves and surfaces. It became a cornerstone of modern 3D modeling in CAD, animation, and visual effects.
The Rise of Commercial CAD and 3D Modeling
As computing power advanced through the 1970s and 1980s, CAD systems matured and moved from research labs to commercial industries.
IGES (1980), The Language of CAD Data
The Initial Graphics Exchange Specification (IGES) was created to enable data exchange between incompatible CAD systems. Developed under an Air Force project, IGES made it possible to transmit engineering drawings across long distances and different platforms. This capability was critical for global manufacturing.
CATIA (1977 and 1981), From Fighter Jets to Submarines
CATIA (Computer-Aided Three-Dimensional Interactive Application) originated at Avions Marcel Dassault in 1977 to aid in designing fighter jets. The software was officially commercialized as CATIA in 1981.
Boeing, Chrysler, and the U.S. Navy adopted CATIA for aircraft, automotive, and submarine design. This established CATIA as a gold standard in aerospace and defense.
Today, CATIA supports the entire product development process from concept to manufacturing and is used across many industries.
AutoCAD (1982), Bringing CAD to the Masses

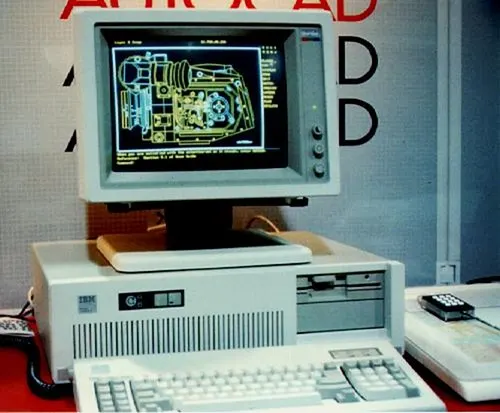

Autodesk revolutionized CAD with the release of AutoCAD in 1982, one of the first CAD tools designed for personal computers.
AutoCAD democratized design by making it affordable and accessible. Initially, it allowed only basic 2D shapes such as lines, polygons, and circles. Over time, it evolved to support advanced 3D modeling and solid modeling.
AutoCAD 2000 introduced web-enabled CAD and online collaboration. This helped shift CAD from corporate mainframes to desktop environments, empowering architects, engineers, and designers around the world.

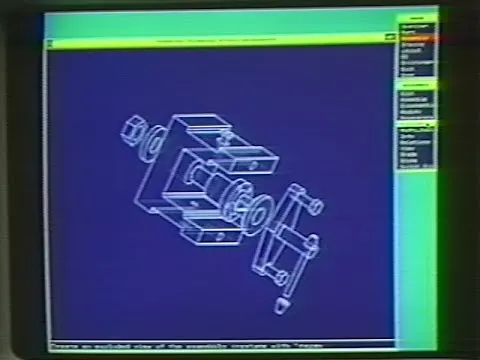

Pro/ENGINEER (1988), Feature-Based Solid Modeling
Parametric Technology Corporation (PTC) released Pro/ENGINEER in 1988. This introduced parametric, feature-based solid modeling to the market.
John Deere was an early adopter. Pro/ENGINEER allowed designers to define parts using parameters and constraints. The designs would automatically update when parameters changed. Pro/ENGINEER also integrated CAD with CAM and CAE (Computer-Aided Engineering).
This innovation helped PTC become a leading force in the CAD space. The software was later rebranded as Creo Elements/Pro.
STEP (1994), The Modern CAD Exchange Format
Like IGES, STEP (Standard for the Exchange of Product model data) emerged as a more advanced neutral file format for exchanging CAD models between different software systems.
STEP supports full 3D product data. It enables interoperability across CAD, CAM, and CAE tools in modern manufacturing pipelines.
SolidWorks (1995), Affordable 3D CAD for Engineers
SolidWorks launched in 1995 with a mission to bring powerful 3D solid modeling to engineers at an affordable price and on Windows PCs.
Its innovations included a Windows-based GUI and affordable licensing. It reduced the average cost of CAD software and shortened training time from several months to a few days.
SolidWorks drove widespread adoption of 3D CAD across small and medium-sized businesses, making 3D design a standard practice.
Solid Edge and Autodesk Inventor, Modern Tools for the 2000s
Solid Edge, developed by Siemens, introduced synchronous technology that combines the speed of direct modeling with the flexibility of parametric design.
Autodesk Inventor, launched in 1999, further advanced 3D CAD with seamless team collaboration and end-to-end product development workflows. It also enhanced 3D visualization for client presentations.
Inventor’s cloud-based upgrade, Autodesk A360, enabled secure cloud storage, easy file sharing, and access from anywhere. This greatly supported distributed design teams.
First 3D Character Appearances: Late 1970s–1980s
The late 1970s saw the first true attempts at modeling and animating characters and changed History of 3D Modeling of Human body parts.
- 1976: Ed Catmull (future co-founder of Pixar) created an early 3D model of his own hand using polygons and animated it.
This is considered one of the first human body parts modeled and animated in 3D. - 1978: Researchers at NYIT and other labs experimented with simple 3D face modeling and lip-sync animations.
First 3D Characters in Films: 1980s
The film industry soon adopted these techniques.
- 1982: Tron — One of the first major films to feature fully computer-generated 3D characters and environments and revolution in History of 3D Modeling.
Though the characters were mainly represented as stylized figures and vehicles, the film marked a key milestone.
- 1985: Young Sherlock Holmes featured the first CGI character integrated with live action — the famous stained glass knight scene, a 3D modeled knight that comes to life.
The Pixar Revolution: 1995
The breakthrough came with Pixar.
- 1995: Toy Story — the first full-length animated feature created entirely with 3D modeled and animated characters.
Characters like Woody and Buzz Lightyear were built from detailed 3D models using polygon meshes, NURBS surfaces, and advanced texturing.
The Current Era: AI, Cloud, and the Future of 3D Modeling
Today’s CAD and 3D modeling landscape is evolving rapidly.
AI-powered tools automate complex tasks such as 3D mesh generation, UV unwrapping, and retopology. Generative design uses AI to propose optimized design options. Cloud platforms such as Autodesk Fusion 360 and Dassault 3DEXPERIENCE enable global collaboration.
3D printing bridges digital models with physical manufacturing. The growth of AR/VR and the metaverse drives demand for optimized, interactive 3D content.
Free and open-source tools such as Blender, along with affordable subscription-based CAD software, are making advanced 3D modeling accessible to creators everywhere.
Conclusion
From hand-drawn geometry to AI-powered design, the History of 3D Modeling and CAD is a remarkable journey of human creativity and technological progress.
What began as a niche tool for aerospace engineers is now embedded in industries as diverse as architecture, gaming, film, healthcare, automotive, and consumer products.
With the rise of AI, real-time engines, and the metaverse, we are only at the beginning of what is possible.
At 3D Services India, we are proud to contribute to this ongoing story by helping clients worldwide bring their ideas to life through cutting-edge 3D modeling and CAD design, contact us.
